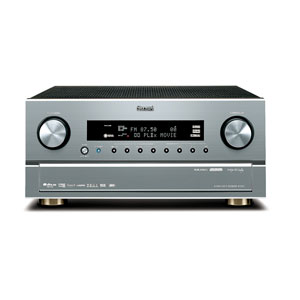

7.1CH Receiver A/V Surround Receiver
with Dolby TrueHD and DTS-HD
R-972
.5 A/V & 3 Audio Inputs
.Front Panel A/V Input
(Including S-Video and Optical In)
.3 Component Video Inputs & 1 Output
(HDTV Compatible)
.Assignable 7 Digital Inputs
(5 Optical & 2 Coaxial) & Digital Output (Optical)
.Color-coded Terminals
.Headphone Output Jack
.12V DC Trigger Output
.IR Input and Output Jack on the Rear Panel
.Dimensions (W x H x D) : 440 x 196 x 450mm
.Weight (Net) : 27.0kg


.HD Audio Decoding for Blu-Ray & HD-DVD
...- DTS-HD (Master Audio/High Resolution Audio)
...- Dolby TrueHD - Dolby Digital Plus
.Legacy Audio Decoding
...- DTS-ES (Discrete /Matrix) - DTS 96 / 2 4
...- DTS Neo : 6 (Cinema / Music) - Dolby Digital EX
...- Dolby Headphone ver.2
...- Dolby Virtual Speaker ver.2 (2 /3 /4 /5 Speaker Layout)
...- Dolby Pro Logic IIx (Movie, Music)
.Multi Channel PCM Decoding
.MP3/ WMA Decoding
.10 DSP Modes (Theater, Movie, Hall1, 2 /Stadium/Church/Club 1, 2 /Game/Matrix/ 4 Stereo)
.Digital Audio Remastering for Greater Detail & Clarity
.Pure Audio (Source Direct) for the Purest Stereo Reproduction
.Digital Video Upscaling (1080p Full HD)
.A / V Sync One touch Automatic Speaker Setup
.Automatic Room EQ (Trinnov Optimizer)
.192kHz /24bit D /A Converter (All Channels)
.7.1 Channel Analog Input 7.1 Channel Preamp Output
.USB Memory Slot
.4 HDMI Inputs & 1 Output (ver. 1.3)
.Video Upconversion (HDMI Analog & Composite S-Video Component)
.Advanced Multi Room Function - Dedicated Remote Controller
.Graphic OSD (On-Screen Display) from All Video Output
.Learning Remote Control with LCD
.Programmable Input Labeling for Front Panel Display and OSD


.100Watts x 2@8Ω, 20Hz~20kHz, 0.05% THD in Stereo Mode
.130W x 7 (1kHz, THD 0.05%)@8Ω / Only Channel
.Wide Range Amplifier Stage (10Hz~100kHz)
.Heavy-Duty Speaker Binding Post
.Assignable 2 Channel Power Amp (Surround Back L/R, Room2 or Bi-AMP)


.Quartz Synthesized Digital Tuning 30-Station Presets (Random)
.RDS Function : PS, TA, RT, CT, etc (Europe Version)
