INKEL Corporation

7.1 CH A/V Surround Receiver with
HDMI Repeater & Full HD Scaler

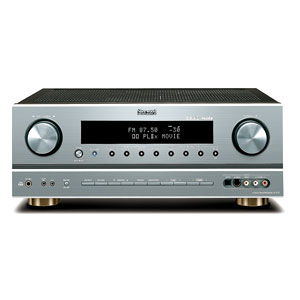

R-872

.4 A / V & 3 Audio Inputs
..- Front Panel A / V Input
....(Including S-Video and Optical In)
..- 3 Component Video Inputs & 1 Output
....(HDTV Compatible)

.Assignable 6 Digital Inputs
....(4 Optical & 2 Coaxial) & Digital Output .

.Color-coded Terminals

.Headphone Output Jack

.12V DC Trigger Output

.IR Input and Output Jack on the Rear Panel

.Dimensions (W x H x D) : 440 x 169 x 380mm

.Weight (Net) : 16.0kg

.HD Audio Decoding for Blu-Ray & HD-DVD
..- DTS-HD (Master Audio / High Resolution Audio)
..- Dolby TrueHD
..- Dolby Digital Plus

.Legacy Audio Decoding,
..- DTS - ES (Discrete / Matrix)
..- DTS 96/24
..- DTS Neo : 6 (Cinema / Music)
..- Dolby Digital EX
..- Dolby Headphone ver.2
..- Dolby Pro Logic IIx (Movie, Music)
..- Dolby Virtual Speaker ver.2 (2/3/4/5 Speaker Layout)

.Multi Channel PCM Decoding

.10 DSP Modes (Theater, Movie, Hall 1, 2 / Stadium / Church /Club 1, 2 / Game / Matrix / 4 Stereo)

.Digital Audio Remastering for Greater Detail & Clarity

.Pure Audio (Source Direct) for the Purest Stereo Reproduction

.Digital Video Upscaling (1080p Full HD)

.A/V Sync

.One touch Automatic Speaker Setup

.Automatic Room EQ

.192kHz/24bit D/A Converter (All Channels)

.7.1 Channel Analog Input 7.1 Channel Preamp Output

.4 HDMI Inputs & 1 Output (ver. 1.3)

.Video Upconversion (HDMI Analog & Composite S-Video Component)

.Advanced Multi Room Function-Dedicated Remote Controller

.OSD (On-Screen Display) from All Video Output

.Learning Remote Control with LCD

.Programmable Input Labeling for Front Panel Display and OSD

.100Watts x 2@8Ω, 20Hz~20kHz, 0.08% THD in Stereo Mode

.120W x 7 (1kHz, THD 0.7%)@8Ω / Only Channel

.Wide Range Amplifier Stage (10Hz~100kHz)

.Heavy-Duty Speaker Binding Post

.Assignable 2 Channel Power Amp
...(Surround Back L /R, Room2 or Bi-AMP)

.Quartz Synthesized Digital Tuning

.30-Station Presets (Random)

.RDS Function : PS, TA, RT, CT, etc (Europe Version)
